We are excited to announce the powerful release of two new function modules in the FX20 Series Distributed I/O! Introducing the 2-channel High-Speed Counter Module and the 2-channel Serial Communication Module—each designed to enhance the versatility of FX20 and further enrich control system functions.

FX20 Function Modules: Enhancing Control Systems

The new FX20 modules are built on a high-speed backplane bus and support multiple coupler configurations, providing a broader range of control system functions and improving overall usability.

2-channel High-Speed Counter Module

Dual-Channel High-Speed Counter Module

The FX20 series high-speed counter module features a dual-channel design, each supporting multiple A, B, Z counting modes, and offering both forward and reverse counting. With a maximum counting frequency of 500KHz, it supports source, sink, and push-pull types of high-speed pulse signals. Each channel is equipped with a pair of DI/DO signal points for easy configuration of control logic, such as overspeed alarms and counter resets.

Key Features of the High-Speed Counter Module

High Measurement Accuracy

Ensures precise measurements for critical applications.

Fast Response Speed

Capable of processing signals with rapid response times.

Frequency Multiplication Counting

Supports frequency multiplication for enhanced counting flexibility.

Retains Count Value After Power Failure

Maintains count values even during power interruptions.

Dual-Channel Serial Communication Module

Dual-Channel Serial Communication Module

The FX20 series serial communication module supports two RS485/RS422/RS232 (selectable) communication interfaces, with multiple baud rates. It provides three working modes: MODBUS RTU, MODBUS ASCII, and Transparent Communication, allowing seamless integration with FX20 series couplers. This enables the conversion of MODBUS and other bus protocols, such as Profinet, EtherCAT, Ethernet/IP, and CC-LINK IE FB. It facilitates connectivity for various devices supporting MODBUS communication, including inverters, measurement instruments, barcode scanners, and RFID systems for PLC and upper-level machine communication.

Key Features of the Serial Communication Module

Compatibility with RS485/RS422/RS232 Interfaces

Easily adaptable to various industrial communication needs.

Multiple Communication Modes

Supports different working modes for enhanced versatility.

Various Communication Rates Supported

Flexibility to meet different speed requirements for diverse devices.

Communication Diagnostics

Built-in diagnostic features to monitor communication efficiency and detect issues.

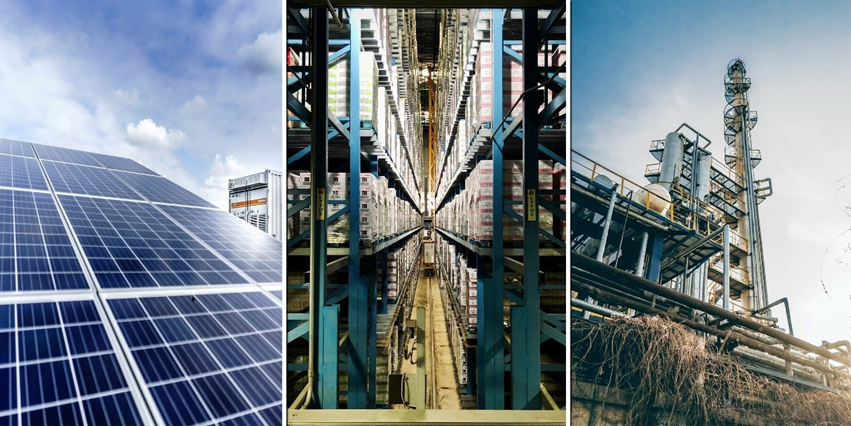

Industry Applications
