ELCO OSM61 Micron Laser Distance Measuring Sensor, an industrial tool fhigh-precision measurements

Precision detection is a critical aspect of industrial measurement. According to market research and forecasts, the rapid development of industrial automation, intelligent manufacturing, precision manufacturing, and related fields is driving the increasing demand for micron-level laser range sensors. The ELCO OSM61 series micron-level laser distance measuring sensor utilizes advanced laser technology to achieve high-precision measurement. With its non-contact measurement capabilities, exceptional accuracy, high speed, and long lifespan, the sensor features a compact integrated metal body design and a small size. This makes it ideal for industrial applications that require extremely high measurement accuracy.

• equipped with OLEO display is clear and intuitive, with humanized operationbuttons, so that the parameter configuration and control become easy and fast.

• is equipped with professional software Point Laser Measurement, which can beconnected to 15 sensors at the same time, providing an intuitive and easy-to-useinterface to help users easily set up the sensors, data acquisition, processing and analysis (as shown in the figure below).

• Available in 5 sizes depending on the detection distance: 30 ± 4mm, 50 ± 10mm,85 ± 20mm, 120 ± 60mm, 250 ± 150mm.

• Maximum resolution is 0.lµm.

• Maximum repeatability up to 0.5µm.

• Sampling period as fast as 200µs.

• Extensive external interfaces: RS485 + analog V/mA + 2 digital out.

ELCO OSM61 micrometer laser ranging sensors are widely used in manufacturing applications to provide precise measurement and inspection of product size, shape, flatness, and other critical parameters. These sensors help manufacturers ensure their products consistently meet design specifications and quality standards.

Case one:

Automatic torch height control, real-time access to torch height data to improve equipment welding efficiency and reduce welding defects

Case two:

Non-contact measurement offers high precision and fast sampling speed, enabling real-time detection and monitoring of material balance.

Case three:

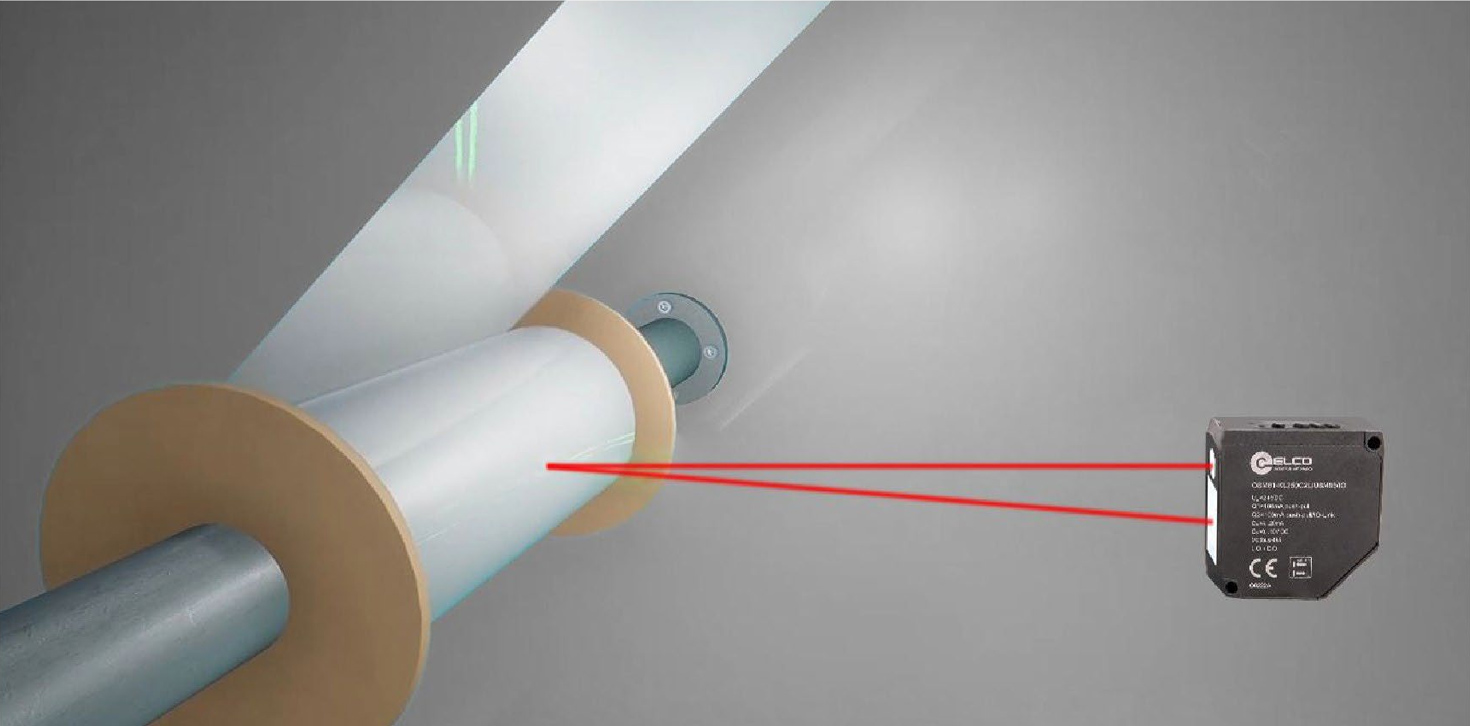

Precision mechanical component detection includes the measurement of bearing eccentricity in rotatingshaft

The OSM61 micron laser distance sensor offers an ideal solution for high-precision measurement and positioning. As technology advances, laser displacement sensors will play an increasingly important role across various industries, driving greater convenience and creating new development opportunities..

The OSM61 micrometer laser distance sensor, equipped with a variety of output functions, is ideal for applications in industries such as automotive parts, 3C, lithium-ion, photovoltaic, semiconductor, and more.
